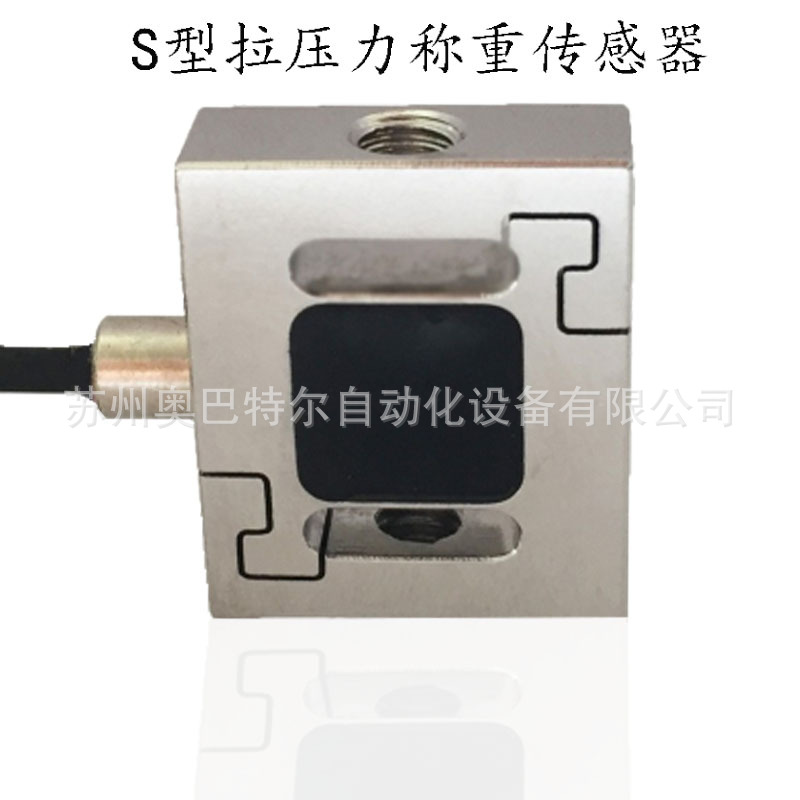

CL-BSM04稱重傳感器
S型傳感器
優質鋁合金材質
安裝簡便、快捷，穩定可靠
使用與材料試驗機、配料秤、機電結合稱和包裝秤等
2kg,5kg,10kg,20kg
客戶可以根據自己需求定制量程。
|
Rated Output |
額定輸出 |
1.0~1.5mV/V±1% |
|
Zero Balance |
零點平衡 |
±1% of rated output |
|
Creep After 30 Minutes |
蠕變 |
±0.05% of rated output |
|
Nonlinearity |
非線性 |
±0.3% of rated output |
|
Hysteresis |
滯后 |
±0.1% of rated output |
|
Repeatability |
重復性 |
±0.3% of rated output |
|
Temp. effect on output |
靈敏度溫漂 |
≤0.05% of applied output/℃ |
|
Temp. Effect on zero |
零點溫漂 |
≤0.05% of rated output/℃ |
|
Safe temp. Range |
可用溫度范圍 |
-10℃to+70℃ |
|
Temp.Compensated |
溫度補償范圍 |
-10℃to+30℃ |
|
Safe Overload |
安全載荷 |
150% |
|
Input Impedance |
輸入阻抗 |
387Ω±20Ω |
|
Output Impedance |
輸出阻抗 |
350Ω±5Ω |
|
Insulation Resistance |
絕緣阻抗 |
≥5000MΩ(50V DC) |
|
Rated Excitation |
推薦激勵電壓 |
5V DC/AC |
|
Maximum Excitation |
最大工作電壓 |
10V DC/AC |
|
Protection Class |
防護等級 |
IP67 |
|
Construction |
電線 |
2m |
|
type |
型號說明 |
型號+‚量程+ƒ非標功能F(無非標則不需填寫) 如：LSZ-BSM04/3kg |
|
Cable Color Code |
導線顏色 |
Red(+E)Black(-E)Green(+S)White(-S) |
